Led low intensity type A

Replacement Product

12V-SOLAR-KIT-20/50Wp-27/32Ah-N

NAVILITE-SOL-CABLE

Part Number 113904

Light part completely molded with 4 levels of leds
Redundant circuits for LED’s : 16 circuits of 4 LEDs in redundancy
No rise from the ground potential (due to lightning for example)
Bird spike

The stainless bracket NAVILITE-HOLDER for mounting shall be order separately

The NAVILITE series are dedicated to night marking of any kind of air navigation obstacle such as wind mast, towers, cranes, building... The NAVILITE has also been designed to replace incandescent obstruction lights or for new installation. The NAVILITE is one piece molded which integrates 4 levels of LED and comes with wiring connectors or a molded cable.

Select another reference:

NAVILITE-230V

NAVILITE-24V-CABLE

NAVILITE-48V

NAVILITE-48V-CABLE

NAVILITE-F-120-240V

NAVILITE-F-48V

NAVILITE-IR-F-048

NAVILITE-SOL-CABLE

Electrical Properties Mechanical Properties Norms Photometric Properties

Luminous intensity		10 Cd
Color night time		Red fixed
Vertical beam spread		10°
Horizontal beam spread		360°

Wattage		3W (red fixed mode)
Current drawn		250 mA
Life time		~10years
Main voltage		12VDC (-10%; +15%)

IP degree		IP66
Wiring		On stripped wires (molded cable lenght 1m) (2 power wires)
Operating temperature	Tu	-40/+55°C

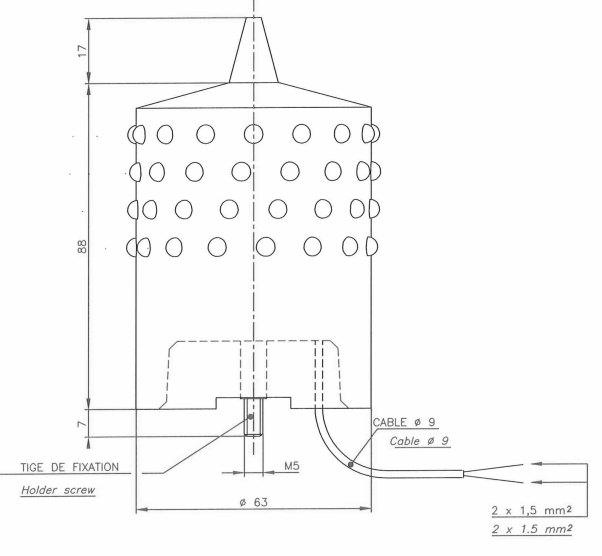

Size of the light		112mm (height) x 63mm (over diameter)
Weight		370g
Attachment		1 screw M5 provided

Standards compliance

ICAO annexe 14 chapter 6 (8th edition 07/2018), EASA (4th edition 2017)
